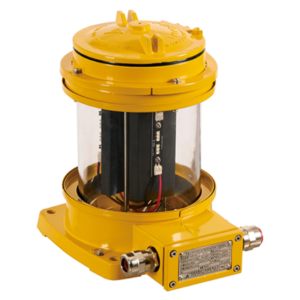

CXH-4P LED NAVIGATION SIGNAL LIGHT

Products characteristic:

  1.    The shell is made of high-strength engineering plastic PA+GF injection, the lampshade adopts injection of PC, the lens hood adopts the good quality stainless steel.
  2. The signal lights have the whole seal structure, it is waterproof under the bad environment.
  3. The connection of the signal light’s lamp holder and the base adopt plug in type, can replace the up and down bulb when open the cover.
  4.    The signal lights adopt the signal light’s bulb which conform to the ship norm, and the average life is more than 700h.
  5.    The signal lights can work normally under the temperature -30℃～55℃

Adopt standard:

  1. Conform to《THE INTERNATIONAL REGULATIONS FOR PREVENTINGS COLLISION AT SEA, 1972》and《GRADE ENTRY NORMS FOR STEEL SHIPS》．
  2. Conform to the international standard IEC60598-1-2008
  3. Conform to the standard of marine electric signal light’s technical condition GB/T 3028-1995

Production authentication:

  1.    Approval by CCS(China Classification Society), certificate number 00515Q20619ROM

        2.    Passed the authentication of CE.

Name Model Visibility Level arc Color
Starboard light CXH1-4P 1n.m 112.5° Green
Port light CXH2-4P 1n.m 112.5° Red
Masthead light CXH3-4P 2n.m 225° White
Stern light CXH4-4P 2n.m 135° White/Yellow
Enquiry
Categories: ,

  • Product ID:CXH-4P
  • Cable outside diameter (mm) :8-12
  • Level arc:360°
  • Material：PA+GF
