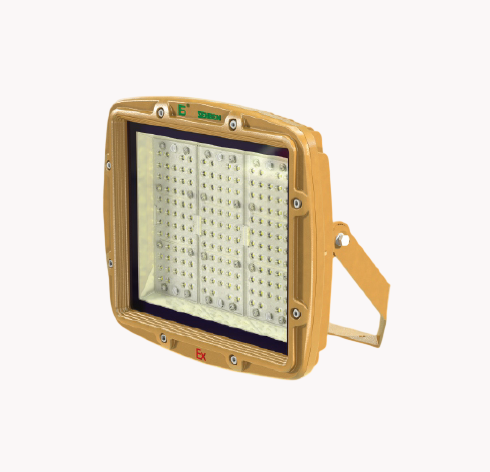

FGQ1249-LED Series Explosion-proof Floodlight

I. Features
1. The enclosure is Composite and dustproof, suitable for flood
lighting in explosive atmospheres or dust hazardous areas.
2. The light is mainly composed of flameproof light source cavity,
increased safety electrical cavity and installation bracket.
3. Die casting aluminum housing with powder coating.
4. Large finned radiator with remarkable cooling effect, reduce
LED junction temperature and extend the LED’s lifespan.
5. Tempered glass cover with good transmittance, impact resistance.
6. Increased safety electrical cavity with built-in sealed LED driver, which
is high efficiency, wide input voltage, high power factor, stable output
current and with protection of short circuit, overt emperature and
over voltage.
7. The light has single & double housing types for different powers.
good corrosion resistance, high luminous efficiency, wide
lighting area, durable and reliable.
8. Beam angle 90° standard, 45° optional.
9. The light is sealed with rubber rings for better protection.
10. Simple structure, reliable explosion-proof performance.
11. Suitable for wall mount, or pole mount (see installation diagram).
12. LED light source with advantages of energy saving, long lifespan,
high luminous efficiency, good shock resistance and long serviceti me
without maintenance. Can be used in strong vibration environment
(If need anti-vibration, please state before ordering).
II. Applications
Suitable for flood lighting for zone 1 and zone 2 hazardous
areas with II A, II B, II C explosive gas or vapor, or zone 21
and zone 22 hazardous areas with flammable dusts.
III. Technical Parameters
1. Comply with GB3836.1, GB3836.2 and GB3836.3, GB3836.9 Part
1~3, 9″ (Equal to IEC 60079 and EN series). GB12476.1, GB12476.5
Part 1, 5 (Equal to IEC 61241 and EN series).
2. Ex-proof Mark:
Ex de mb IIC T6/T5/T4 Gb; Ex tD A21 IP66 T80℃/T95℃/T130℃
3. Rated Voltage: 220VAC, 50/60Hz
4. Input Voltage: 90-305VAC, 50/60Hz
5. Rated Power: 120W, 150W, 180W, 200W, 240W (Single)
300W, 360W, 400W, 480W (Double)
6. Light Source: LED
7. Power Factor: ≥0.95
8. IP Rate: IP66
9. Corrosion-proof Rate: WF2
10. Ambient Temperature: -40℃ ~ +55℃
11.Cable Entry: G3/4”
12. Cable Outer Diameter: φ7 – φ12.5mm
