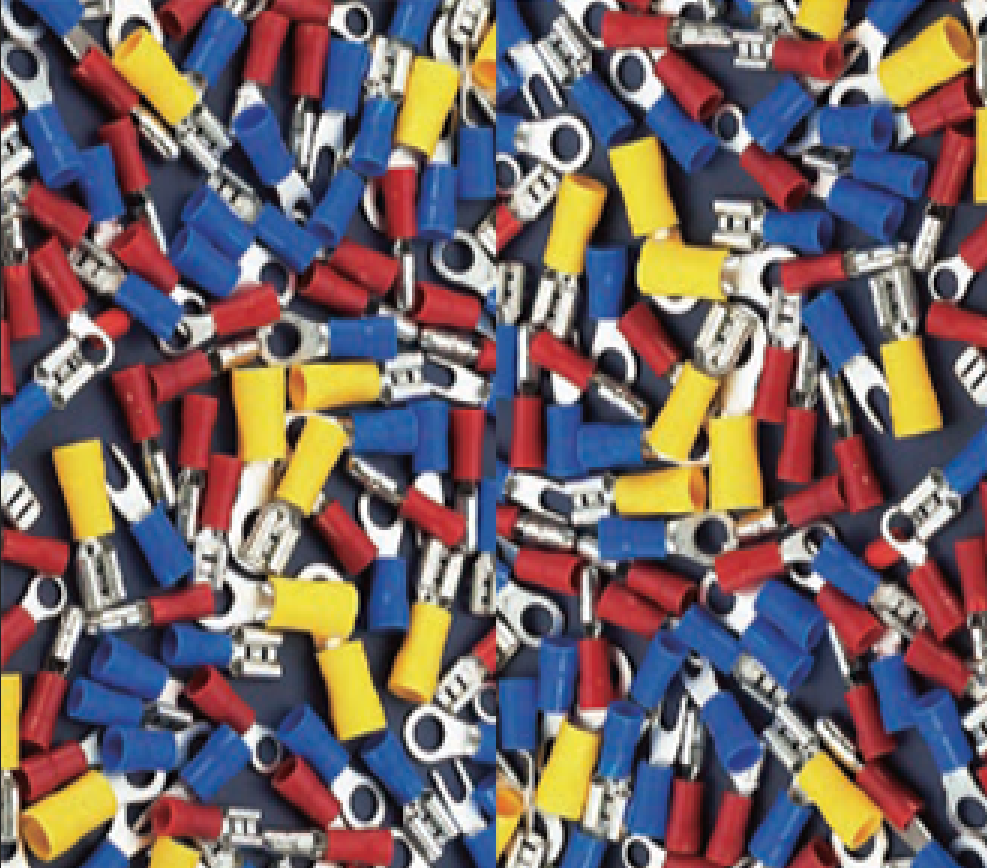

Insulated Cable Shoe

Common termination styles
Insulated cable shoes are available in several configurations, each suited for different applications.
  • Ring terminals: Designed with a closed circular end, these provide a secure, permanent connection to a bolt or stud.
    • Product example: EASE PVC Insulated Ring Terminals, available for various wire sizes.
  • Fork (spade) terminals: These have a U-shaped opening, which allows for quick installation and removal from a screw terminal without removing the screw entirely.
    • Product example: ACE PVC Insulated Cable Lugs, Fork Type.
  • Butt or splice connectors: Tubular connectors used to join two wires end-to-end within a single, insulated housing.
  • Pin terminals: These are designed for insertion into female quick-connect terminals, often used in control panels.
    • Product example: Elpress Pre-Insulated Pin Terminals.
  • Flag terminals: These have a perpendicular design, allowing a wire to be connected at a 90-degree angle in tight spaces.
  • Key features and benefits
Insulated cable shoes offer several advantages for electrical systems.
  • Enhanced safety: The insulation reduces the risk of electrical shock and prevents accidental short circuits.
  • Corrosion protection: The sealed insulation protects the metal connection from moisture, dust, and chemicals. Heat-shrink varieties, which melt to form a watertight seal, provide superior protection in harsh environments.
  • Simplified installation: Many lugs are color-coded to match specific wire sizes, simplifying the selection process.
  • Reliability: A proper crimp, achieved with the correct tool, creates a secure, gas-tight connection that prevents wire pull-out and ensures consistent conductivity.
Enquiry
Categories: ,









E3010103 CABLE SHOE R-TG 1.25-3 RV1.25-3
E3010104 CABLE SHOE R-TG 1.25-4 RV1.25-4
E3010105 CABLE SHOE R-TG 1.25-5 RV1.25-5
E3010106 CABLE SHOE R-TG 1.25-6 RV1.25-6
E3010108 CABLE SHOE R-TG 1.25-8 RV1.25-8
E3010110 CABLE SHOE R-TG 1.25-10 RV1.25-10
E3010203 CABLE SHOE R-TG 2.0-3 RV2-3
E3010204 CABLE SHOE R-TG 2.0-4 RV2-4
E3010205 CABLE SHOE R-TG 2.0-5 RV2-5
E3010206 CABLE SHOE R-TG 2.0-6 RV2-6
E3010208 CABLE SHOE R-TG 2.0-8 RV2-8
E3010210 CABLE SHOE R-TG 2.0-10 RV2-9
E3010504 CABLE SHOE R-TG 5.5-4 RV5.5-4
E3010505 CABLE SHOE R-TG 5.5-5 RV5.5-5
E3010506 CABLE SHOE R-TG 5.5-6 RV5.5-6
E3010508 CABLE SHOE R-TG 5.5-8 RV5.5-8
E3010510 CABLE SHOE R-TG 5.5-10 RV5.5-10
E3010512 CABLE SHOE R-TG 5.5-12 RV5.5-12









E3020103 CABLE SHOE Y-TG 1.25-3 SV1.25-3
E3020104 CABLE SHOE Y-TG 1.25-4 SV1.25-4
E3020105 CABLE SHOE Y-TG 1.25-5 SV1.25-5
E3020106 CABLE SHOE Y-TG 1.25-6 SV1.25-6
E3020203 CABLE SHOE Y-TG 2-3 SV2-3
E3020204 CABLE SHOE Y-TG 2.5-4 SV2-4
E3020205 CABLE SHOE Y-TG 2.5-5 SV2-5
E3020206 CABLE SHOE Y-TG 2.5-6 SV2-6
E3020208 CABLE SHOE Y-TG 2.5-8 SV2-8
E3020504 CABLE SHOE Y-TG 4-.5.4 SV5.5-4
E3020505 CABLE SHOE Y-TG 4-.5.5 SV5.5-5
E3020506 CABLE SHOE Y-TG 4-.5.6 SV5.5-6
E3020508 CABLE SHOE Y-TG 4-.5.8 SV5.5-8
E3020510 CABLE SHOE Y-TG 4-.5.10 SV5.5-10



E3030001 CABLE SHOE B-TYPE 1.25MM RED (BUT CONNECTOR) BV1.25
E3030002 CABLE SHOE B-TYPE 2.5MM BLUE (BUT CONNECTOR) BV2
E3030005 CABLE SHOE B-TYPE 5.5MM YELLOW (BUT CONNECTOR) BV5.5
E3030008 CABLE SHOE B-TYPE 8 MM(BUT CONNECTOR) BV8

E3031001 CABLE SHOE ROUND PIN 1.5 RED PTV1.25-10
E3031002 CABLE SHOE ROUND PIN 2.5 BLUE PTV2-10
E3031005 CABLE SHOE ROUND PIN 5.5 YELLOW PTV5.5-13





E3035013 CABLE SHOE MALE PIN  RED 1.25-3 MDD1.25-110
E3035014 CABLE SHOE MALE PIN  RED 1.25-4 MDD1.25-187
E3035016 CABLE SHOE MALE PIN  RED 1.25-6 MDD1.25-250
E3035023 CABLE SHOE MALE PIN  BLUE  2.5 -3 MDD2-110
E3035024 CABLE SHOE MALE PIN  BLUE  2.5 -4 MDD2-187
E3035026 CABLE SHOE MALE PIN  BLUE  2.5 -6
E3035056 CABLE SHOE MALE PIN  YELLOW  6 MDD6-250







E3036013 CABLE SHOE FEMALE RECEPTACLE   RED 1.25-3 FDD1.25-110
E3036014 CABLE SHOE FEMALE RECEPTACLE   RED 1.25-4 FDD1.25-187
E3036016 CABLE SHOE FEMALE RECEPTACLE   RED 1.25-6 FD1.25-250
E3036023 CABLE SHOE FEMALE RECEPTACLE   BLUE 2.5-3 FDD2-110
E3036024 CABLE SHOE FEMALE RECEPTACLE   BLUE 2.5-4 FDD2-187
E3036026 CABLE SHOE FEMALE RECEPTACLE   BLUE 2.5-6 FDD2-250
E3036506 CABLE SHOE FEMALE RECEPTACLE   YELLOW 5.5-6 FDD5.5-250
