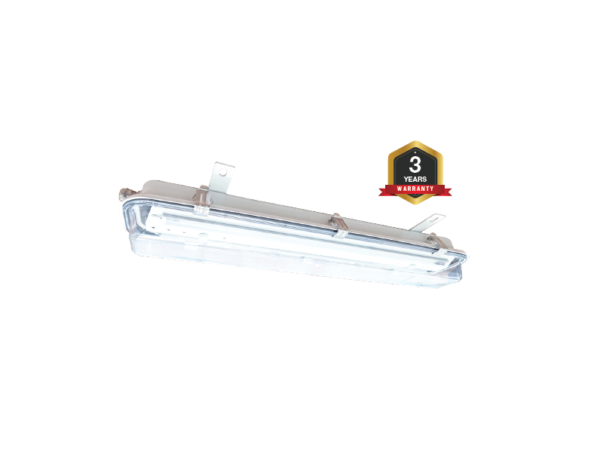

LED WATERTIGHT LUMINAIRE

LSW SERIES (LITE)

Key Features
– Built-in with high thermal efcient linear module that allows lighting to operate at
ambient temperature of up to 45ºC
– Special designed clear polycarbonate diffuser to optimize the LED light transmission
– Long service life of 50,000 hours L70 @ 45ºC (Ta)
– Safety, EMC and IEC compliance
– Available with battery backup system and emergency lighting

Application
Decks, Yards, Coldrooms
Mounting Method
Surface mounted
Material
Diffuser: Polycarbonate
Housing: SUS316 stainless steel or
Zinc coated steel, Powder coated white
Electrical
Flexible wiring, Heat resistant up to 105°C
Options
100V ~ 120V AC
220V ~ 240V AC
Weight
LSW21LX: 2.6Kg LSW22LX: 2.7Kg
LSW41LX: 4.8Kg LSW42LX: 5.0Kg
With 3Hr emergency backup battery: Add 0.18Kg
