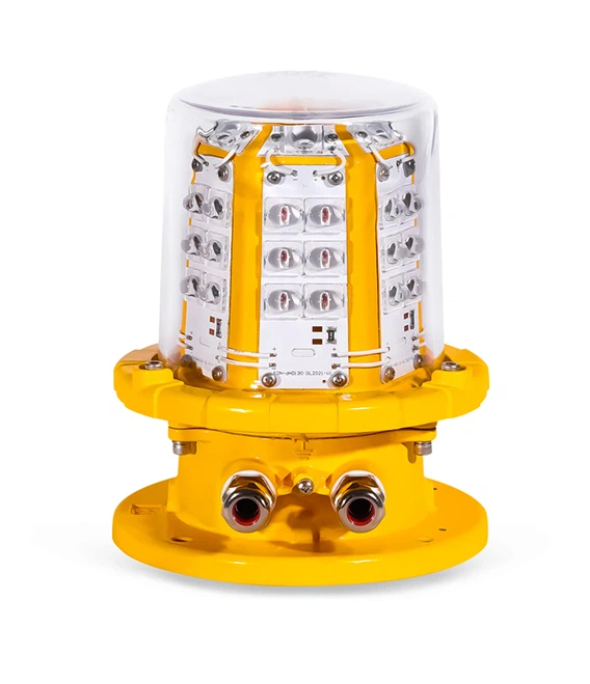

EX-PROOF Helideck Status Lights

dHD130

Explosion-proof LED indicators are used to inform helicopter pilots of the status of the landing platform, helping them determine whether it is safe to land.

APPLICATION SCOPE

Explosion-proof LED indicators are used to inform helicopter pilots of the status of the landing platform, helping them determine whether it is safe to land.

MAIN FEATURES

1.The shell is made of 316L stainless steel, and the lampshade is anti-UV PC.
2.Utilizes a high-efficiency, long-life, environmentally friendly SMT LED light source, with an average LED lifespan of over 50,000 hours.
3.Equipped with a highly reliable constant current driver.

STANDARDS AND CERTIFICATES

 IEC 60598-1
● IEC 60092-306
● IEC 62722-2-1
● GD03-2008
● GB 7000
● GB 3836
● GB 12476
● GB 19510.1
● GB/T 2423.18
● GB 4208
● CAP 437 (2018)
● ICAO Annex 14 Volume 1 Appendix 1 (Eighth Edition)
● Certified by China National Explosion-proof Certification
● Certified by China Classification Society
TECHNICAL PARAMETERS



Product name Explosion proof led indicator
Power ≤60W
Voltage AC85-264V 50/60Hz DC24V
Colour Red R
Protection level IP66
Ex-Mark Exd II BT6Gb/Ex tD A21 IP66 T80℃
Temperature -35℃~+55℃
Light intensity

( Horizontal angle 360°)

 Vertical angle

Within all elevation angles Elevation angles between 2-10°

I≥176cd,120/min I≥700cd,120/min

Can weaken to I≤60cd,60/min
