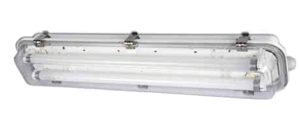

Marine Watertight Fluorescent Light ZYC26/46 IP67

Scope of Application:
Applicable for illumination of water-droplets, water-spattering, or
dew-coagulating places on ships, such as the engine rooms, dry
cabins, tunnels, pipeline routeway and weather decks, etc
Housing:
Formed by deep-drawn carbon-steel, or galvanized steel
Lamp Diffuser:
PC injection lamp shade, with water-tight sealing structure
Wiring:
Complete inside pre-wiring, equipped with a junction box on both
sides for convenient connection to 220V or 24V power supply
respectively. Only one Junction box is available for models without
emergency Lamp.
To prevent possible electric shock, a copper earthing-terminal
marked with is installed outside the fixtures

Ballast & Capacitor:
Equipped with a set of heavy duty magnetic ballasts and a compensating capacitor for reliable operation and rapid-start.
The electronic ballasts are also available at customer’s option.
Emergency Lamp:
The light fittings with a mark on the surface of PC shade are equipped with a Ba15d lamp holder for emergency bulbs of 24V
10W/15W. The emergency bulbs should be ordered separately
The light fittings with a mark on the surface of PC shade are equipped with a battery, an automatic charger, and an
emergency bulb of 24V 15W, this emergency bulb will automatically work for not less than 180minutes in case of power blackout
